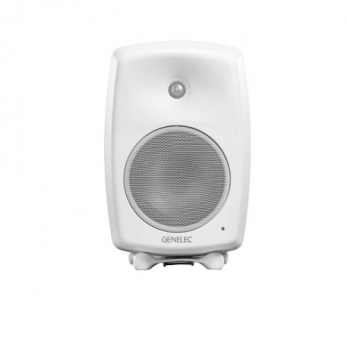

Loa Genelec 8340A SAM™ Studio Monitor

Optimize Your Monitoring Accuracy

Genelec 8340A bi-amplified studio monitors are built for demanding professional applications, providing you with a compact footprint, a sophisticated enclosure design, and outstanding acoustic performance. The 8340A monitors are compatible with Genelec's Smart Active Monitor (SAM) technology - which we're very impressed with at Sweetwater. SAM technology allows these studio monitors to optimize themselves and automatically align their level, timing, and equalization of room response anomalies, ensuring that you hear the original nuances of your source, without leaving anything out or adding anything to your signal. On top of that, these monitors deliver impressively deep bass, built-in decoupling, ISS power management, and more. Whether you work in a recording studio, post-production house, digital edit suite, radio, or television, you can't go wrong with a set of Genelec 8340A bi-amplified studio monitors!

Genelec 8340A Smart Active Studio Monitor at a Glance:

 * Minimum Diffraction Enclosure for superb imaging
 * Genelec's Directivity Control Waveguide enhances directivity
 * High performance reflex port design
 * High audio output with low distortion
 * Protected by Genelec's ISS power management system
 * Versatile mounting options plus special Iso-Pod stand

Minimum Diffraction Enclosure for superb imaging

The 8340A features Genelec's MDE (Minimum Diffraction Enclosure) enclosure with rounded edges and gently curved front and sides. This allows the 8340A to achieve a very smooth frequency response and superb imaging qualities with minimized cabinet edge diffraction.

Genelec's Directivity Control Waveguide enhances directivity

Like all Genelec 8000 Series monitors, the 8340A also features the advanced Genelec Directivity Control Waveguide (DCW). The revolutionary DCW has been further enhanced to provide extremely accurate control of the 8340A's directivity. Genelec designed this specially shaped, very smooth surface and integrated it with the enclosure. Its area has been maximized to achieve an astoundingly flat on- and off-axis frequency response. As a result, the 8340A has an astoundingly wide, flat frequency response both on- and off-axis. This also gives the 8340A superb imaging qualities and less listening fatigue.

High performance reflex port design

To increase the 8340A woofer's low-frequency extension and SPL capacity, Genelec designed an ingenious flow-optimized reflex port. The long, curved tube maximizes airflow, so the 8340A can reproduce deep bass without compression. The tube terminates with a wide flare, minimizing port noises and providing excellent bass articulation. An optimized die-cast aluminum structure with an extremely durable semi-matte finish and acoustically optimized metal grilles add to the 8340A's acoustic excellence.

High audio output with low distortion

Genelec's low distortion drivers (6.5" woofer and 3/4" metal dome tweeter) are driven by the 8340A's dedicated 150-watt Class D bass and treble amplifiers after sophisticated filtering. Magnetic shielding, overload protection circuitry, and versatile room response controls are standard.

Protected by Genelec's ISS power management system

Thanks to Genelec's Intelligent Signal Sensing (ISS) power management system, you never have to remember to shut down your 8340A monitors again. ISS constantly checks for input signal. After a while, if ISS doesn't detect anything, it switches your 8340A over to a low-power sleep state, safeguarding your gear and sparing you the wasted electricity.

Versatile mounting options plus special Iso-Pod stand

The versatile mounting features on the 8340A include integrated rear support points for wall and floor stands plus a further M10 thread for mounting on the cabinet base. In addition, every Genelec 8340A monitor comes with a standard Iso-Pod (Isolation Positioner/Decoupler). The Iso-Pod is a clever mounting stand, which allows the 8340A to perform in either the vertical or horizontal position. The Iso-Pod also enables the acoustic axis of the monitor to be aimed at the listener while acoustically and mechanically decoupling the monitor from the surface it is resting on.

Genelec 8340A Smart Active Studio Monitor Features:

 * 2-way monitor with 6.5" woofer and 3/4" metal dome tweeter
 * HF Directivity Control Waveguide (DCW)
 * Optimized Class D amplifiers: 150-watt (LF), 150-watt (HF)
 * Active crossovers
 * Compatible with Genelec's Smart Active Monitor (SAM) technology
 * Onboard protection circuitry
 * Minimum Diffraction Enclosure, reflex port design
 * Intelligent Signal Sensing conserves power when not in use
 * Iso-Pod stand built-in
 * Versatile mounting options

Tech Specs

 * Powered:    Yes
 * LF Driver Size:    6.5" woofer
 * LF Driver Type:    Cone
 * HF Driver Size:    1" tweeter
 * HF Driver Type:    Metal dome
 * LF Driver Power Amp:    150W
 * HF Driver Power Amp:    150W
 * Frequency Response:    45Hz-20kHz
 * Crossover Frequency:    2.6kHz
 * Maximum Peak SPL:    ≥ 118 dB SPL @ 1m

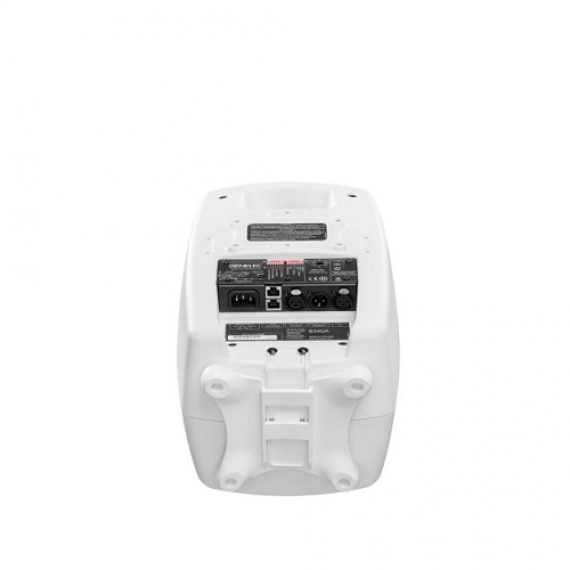

 * Input Types:    1 x XLR (analog), 1 x XLR (AES/EBU)
 * Output Types:    1 x XLR Thru (AES/EBU)
 * Other I/O:    2 x RJ-45
 * Enclosure Type:    Rear Ported
 * Enclosure Material:    Minimum Diffraction Enclosure (MDE)
 * Height:    13.81"
 * Width:    9.37"
 * Depth:    8.81"
 * Weight:    18.5 lbs.
 * Manufacturer Part Number:    8340APM
